UD Prepreg Tshuab

Cov txheej txheem ntws ntawm Unidirectional (UD) ntaub Prepreg MachineYarn unwinding → Bundling → Warping → Spreading → Dipping / txheej → Zaj duab xis npog → ziab thiab kho → Qhia → Winding

Xa kev nug

Kev xa khoom sai
Quality Assurance
24/7 Kev Pabcuam Cov Neeg Siv Khoom

Khoom Taw qhia

UD Prepreg Tshuab

Daim ntawv thov

UD Prepreg Tshuab nrog zaj duab xis thiab cob yog siv rau lamination rau UHMW-PE UD fabrics, UD Aramid fabrics.

Daim ntawv thov thiab kev siv ntawm Unidirectional Prepregs thiab Ntawv

- Chaw thiab Aircraft qauv thiab qhov chaw

- Hniav rau cua turbines

- Automotive qhov chaw thiab cov khoom

- Cov khoom ua si ua si

- Muaj qauv thiab qhov chaw

- Tub rog

- Civil and Building Reinforcemen

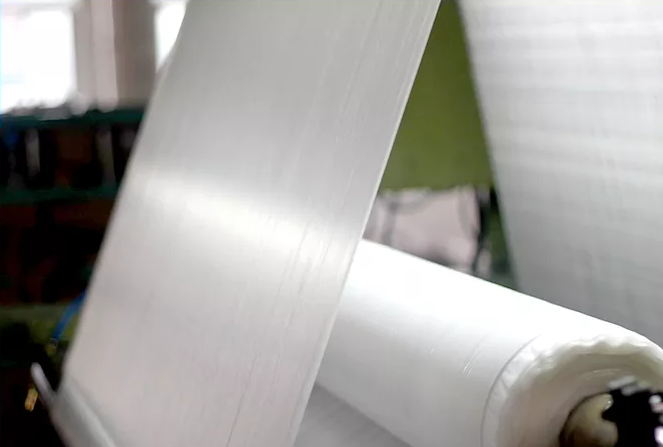

UD FABRIC

Kev ua haujlwm ntawm lub tshuab

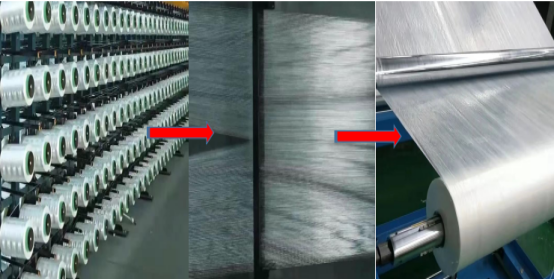

Cov txheej txheem ntws ntawm UD Prepreg Tshuab
Cov xov paj unwinding → Bundling → Warping → Spreading → Dipping / txheej → zaj duab xis npog → ziab thiab kho → Qhia → Winding.

Muab cov tubular ultra-siab molecular hnyav polyethylene fibers rau ntawm lub creels, unwind lawv thiab teem lawv nyob rau hauv parallel nrog lub pob khoom. Tom qab tau bundled, thaum uas tig mus PE fibers dhau los ntawm ib tug warping ntaus ntawv los ua tib yam thiab nruj nreem teem fiber bundles. Pre nro yog siv rau lub stretched ribbon cab los xyuas kom meej nws flatness. Tom qab muab tso rau hauv cov khoom nplaum thiab coated nrog fibers, cov khoom siv fiber ntau zoo li qub tom qab tau tswj los ntawm cov khoom siv nplaum yog sib xyaw nrog PE bearing zaj duab xis, thiab tom qab ntawd evaporated.los ntawm lub tshav kub rau cov menyuam kom solidify cov resin hnyav los ua ib tug unidirectional PEUD daim ntaub.

UHMW-PE UD Aramid fabrics

Cov yam ntxwv ntawm lub tshuab

1. Lub tshuab UD Prepreg no yog siv rau laminating UHMW-PE UD fabrics, UD Aramid fabrics. Lub tshuab yog nruab nrog tsis siv neeg sau, unwinding, tso tawm zaj duab xis, sau zaj duab xis, tsis siv neeg kho, composite drying, dej txias, tsis siv neeg txiav ntug thiab lwm yam units. Cov khoom sib xyaw nrog cov txheej txheej zoo sib xws, sib xyaw ua ke, tsis muaj tensile deformation, tsis muaj blistering, tsis muaj wrinkles, mos, zoo heev huab cua permeability, winding zoo thiab lwm yam.

2. UD Aramid npuag Prepreg Tshuab txais cov khoom siv ruaj khov dov thiab cov cuab yeej tshwj xeeb ultrahigh siab kom sib npaug ntawm cov xaim, impregnated nrog cov kua nplaum, thiab tom qab ntawd laminated los ntawm 0/90º orthogonal composite thaum kawg.

3. Nws txais yuav HMI + PLC tswj qhov system, kev ua haujlwm yooj yim, kev ua haujlwm siab ntau lawm, txo cov haujlwm ua haujlwm tsis zoo.

4. Cov khoom lag luam tsis tshua muaj zog, cuam tshuam kuj, cov khoom lag luam zoo nkauj, cov khoom lag luam tshwj xeeb yog cov pob zeb tshwj xeeb txiav cov khaub ncaws hauv ob sab phlu thiab tshwj xeeb rau pej xeem tiv thaiv kev tawm tsam

5. nws yog tsim rau cov dej-soluble thiab hnyav-raws li nplaum txheej composite, kom ua tiav ntau lub hom phiaj.

Laminating nyhuv

Main technical parameters

1) Cov khoom siv yob nto: 2000mm

2) Cov khoom siv dav: Tsawg dua lossis sib npaug li 1650mm

3) Adhesive siv: dej-raws li

4) Gluing method: dipping / txheej

5) Hlau kis hom: mechanical multi yob + profiled

6) Tswj hom: HMI + PLC

7) Tsav tswj: sib txawv zaus + servo tsav

8) Lamination roller: sab nraud circulating thermal roj cov menyuam

9) Cua sov qhov chaw hom: circulating thermal roj

10) Kub tswj hom: 60KW sab nraud pwm roj rhaub

11) Dynamic tshuav nyiaj li cas: kev sib txhuam daim iav nto cov menyuam / cov menyuam cua sov

12) Roller deg kev kho mob: txhuam cov menyuam daim iav qib 14

13) Tag nrho lub zog: 90KW

14) Composite ceev: 5-11m/min

15) Fais fab mov: 380V / 50Hz

16) Ntev * dav * qhov siab: 31500 * 5180 * 3000mm

Rau UD ntaub, peb kuj muaj daim ntawv txiav tshuab, crossply tshuab. Pls saib cov duab hauv qab no.

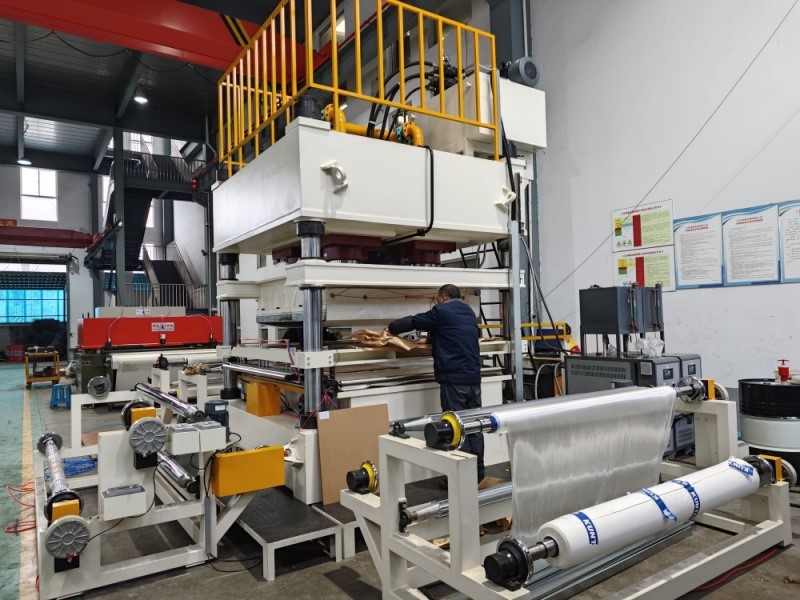

1. crossply tshuab

2. daim ntawv txiav tshuab

FAQ

Q: Koj puas yog cov chaw tsim khoom lossis tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom tshaj lij tshaj 35 xyoo 'experienee.
Q: Koj lub Hoobkas nyob qhov twg? Kuv tuaj yeem mus saib tau li cas?
A: Peb lub Hoobkas nyob hauv Zhengang Industrial Park, Yandu Town, Yancheng City, Jiangsu Province, Suav.
Koj tuaj yeem ya mus rau tshav dav hlau Shanghai ncaj qha. Peb zoo siab tos txais txhua tus neeg tuaj saib hauv tsev thiab txawv teb chaws tuaj xyuas peb!
Q: Koj cov khoom tseem ceeb yog dab tsi?
A: Peb cov khoom tseem ceeb yog laminating tshuab, prepreg tshuab thiab txiav tshuab.
Q: Cov kev lag luam twg yog koj lub tshuab siv dav hauv?
A: Peb cov cav tov tau siv dav hauv kev lag luam ntawm kev lag luam kev tiv thaiv tub rog, kev lag luam tsheb txiav, kev lag luam khau, kev lag luam tsoos tsho, kev lag luam upholstery, thiab kev tsim kho kev lag luam thiab lwm yam.
Q: Koj lub Hoobkas ua li cas txog kev tswj xyuas zoo?
A: Qhov zoo yog qhov tseem ceeb. Peb tswj qhov zoo ntawm peb cov khoom nruj me ntsis, los ntawm cov khoom tuaj, txheej txheem sib dhos,
mus rau cov khoom tiav. Peb lub Hoobkas tau txais CE & ISO Certification.
Q: Yog tias tsis muaj cov tshuab tsim nyog los ntawm koj cov npe khoom, peb puas tuaj yeem hloov kho los ntawm koj?
A: Yog lawm, peb muaj peb tus kheej tsim engineers, thiab tuaj yeem kho cov khoom raws li koj xav tau.
